V700-01UN

  • V700-01UN
  • Product Name:

    V700-01UN
  • Model No.:

    V700-01UN


Product Description



Key Features:
–  Electrical lift power data center
–  Opens/closes by pressing on top panel
–  AC power outlets available for US, Europe, and other major world markets
–  CE compliant





Model: V700-01UN
P/N: Bezel Colour Finish
700.0101 Round Black Brushed Aluminum
700.0102 Round Black Matte





Specifications

AV & Data Electrical
(6) RJ-45 Cat5e F-F Panel: (6) Universal F, 220-250VAC, 60Hz, 10A
(6) Audio 3.5mm stereo F-F Bottom: (1) IEC C14, 110-240VAC, 50/60Hz, 10A
(6) VGA 15pin F-F
(6) VGA select button

Mechanical Accessories

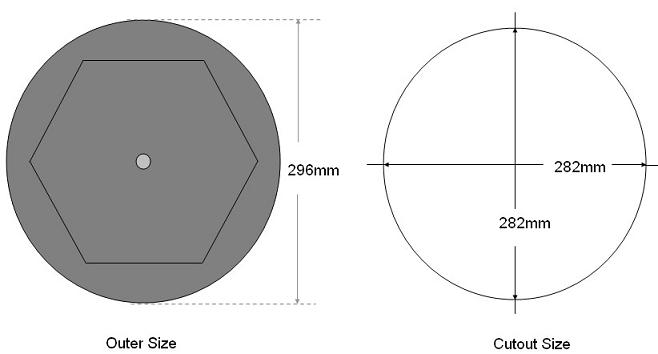

Panel size: 296x296mm Mounting screws and brackets
Cut out: R=142mm User Manual
Weight (approx.):  10kg
Shipping Weight(approx.):  11kg

Packing
1 unit / box (420x415x400mm)

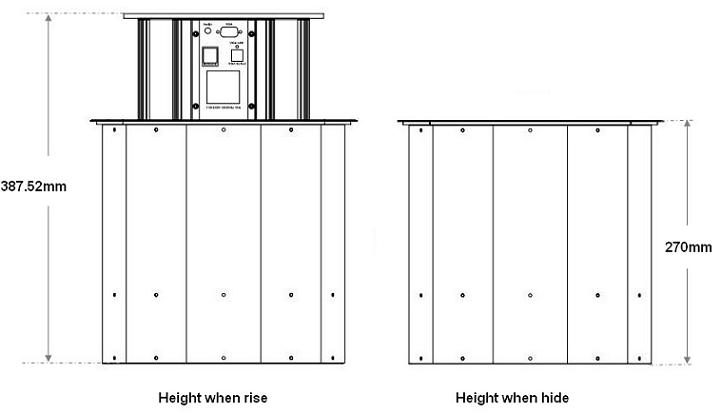

Dimensions
