V600-01UN
- Product Description
Key Features:

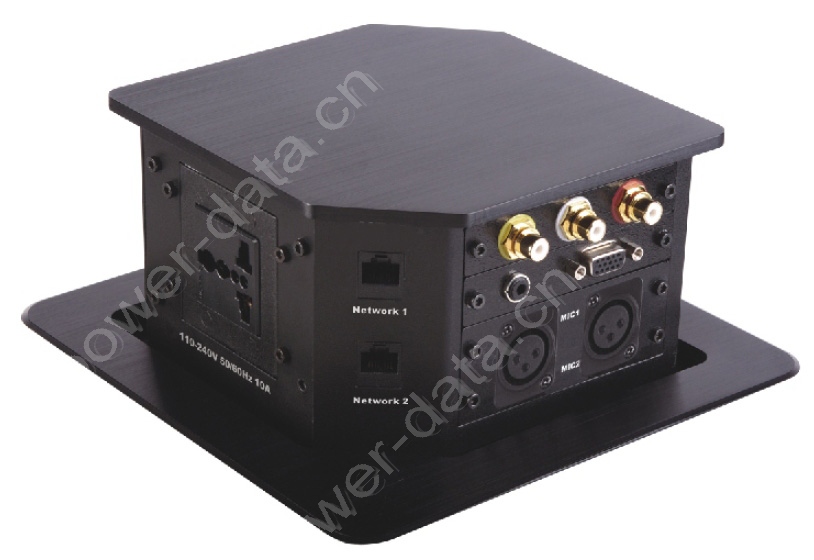

– Lift power data center, with assembled AV and Data plates
– Opens/closes by pressing on top panel
– Durable pneumatic movement and mechanical latching mechanism
– AC power outlets available for US, Europe, and other major world markets

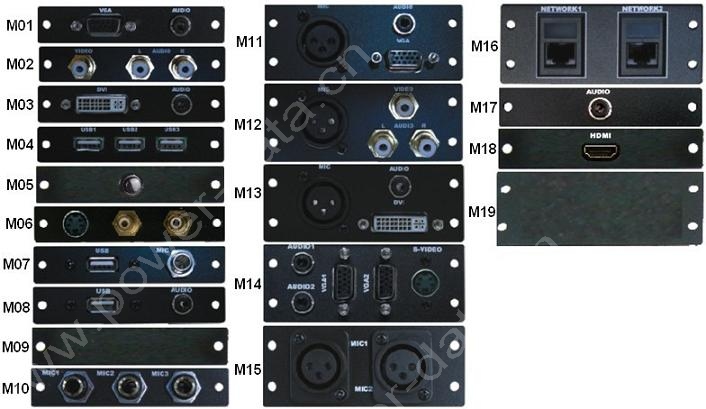

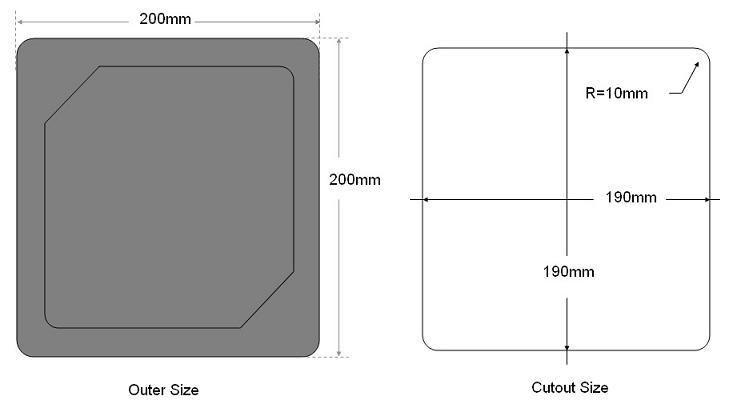

– CE compliantModel: V600-01UN P/N: Bezel Colour Finish 600.0101 Square Black Brushed Aluminum 600.0102 Square Black Matte Specifications AV & Data Electrical Network: (4) RJ-45 F-F Panel: (2) Universal F, 220-250VAC, 60Hz, 10A Audio: (2) 3.5mm stereo F-M Bottom: (1) IEC C14 F, 110-240VAC, 50/60Hz, 10A VGA: (2) 15pin F-M Video: (2) RCA Video F-M Audio: (2) RCA Audio-L F-M Audio: (2) RCA Audio-R F-M Microphone: (4) Canon 3pin, F-Bulk Cable Mechanical Accessories Panel size:200x200x187mm Mounting screws and brackets Cut out: 190x190mm, R=10 User Manual Weight (approx.): 5.0kg Shipping Weight(approx.): 6.0kg Packing 1 unit / box (295x290x360mm) Optional AV Data Plates
Dimensions
