S240-01

  • S240-01
  • Product Name:

    S240-01
  • Model No.:

    S240-01


Product Description

Key Features:
–  Four S100 units in one panel, two facing one direction and two facing the opposite direction
–  Opens/closes by pressing on top panel
–  Durable pneumatic movement and mechanical latching mechanism
–  AC power outlets available for US, Europe, and other major world markets
–  CE compliant
–  Colour: Black, Silver
–  Bezel: Square
–  Finish: Brushed Aluminum





Model: S240-01
P/N: Bezel Colour Finish
240.0101 Square Black Brushed Aluminum
240.0102 Square Silver Brushed Aluminum
240.0103 Square Black Matte
240.0104 Square Silver Matte





Specifications

AV & Data Electrical
Network: (6) RJ-45 F-M AC Power: (4) Universal F-M, 220-250VAC, 60Hz, 10A
Audio: (2) 3.5mm stereo F-M
VGA: (2) 15pin F-M

Mechanical Accessories

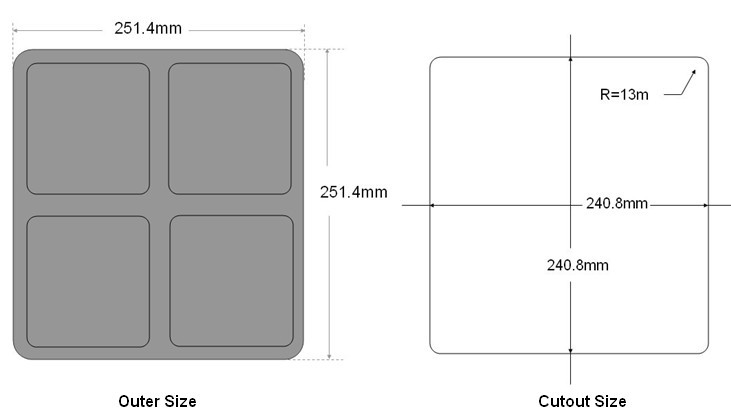

Panel size: 251.4x251.4mm Mounting screws and brackets
Cut out: 240.8x240.8mm, R=13 User Manual
Weight (approx.): 6kg
Shipping Weight(approx.): 8kg

Packing
1pc per box
box size:
2pcs in a carton
carton size:



Dimensions
